KoinèSuspension

designed by Mandalaki Studio

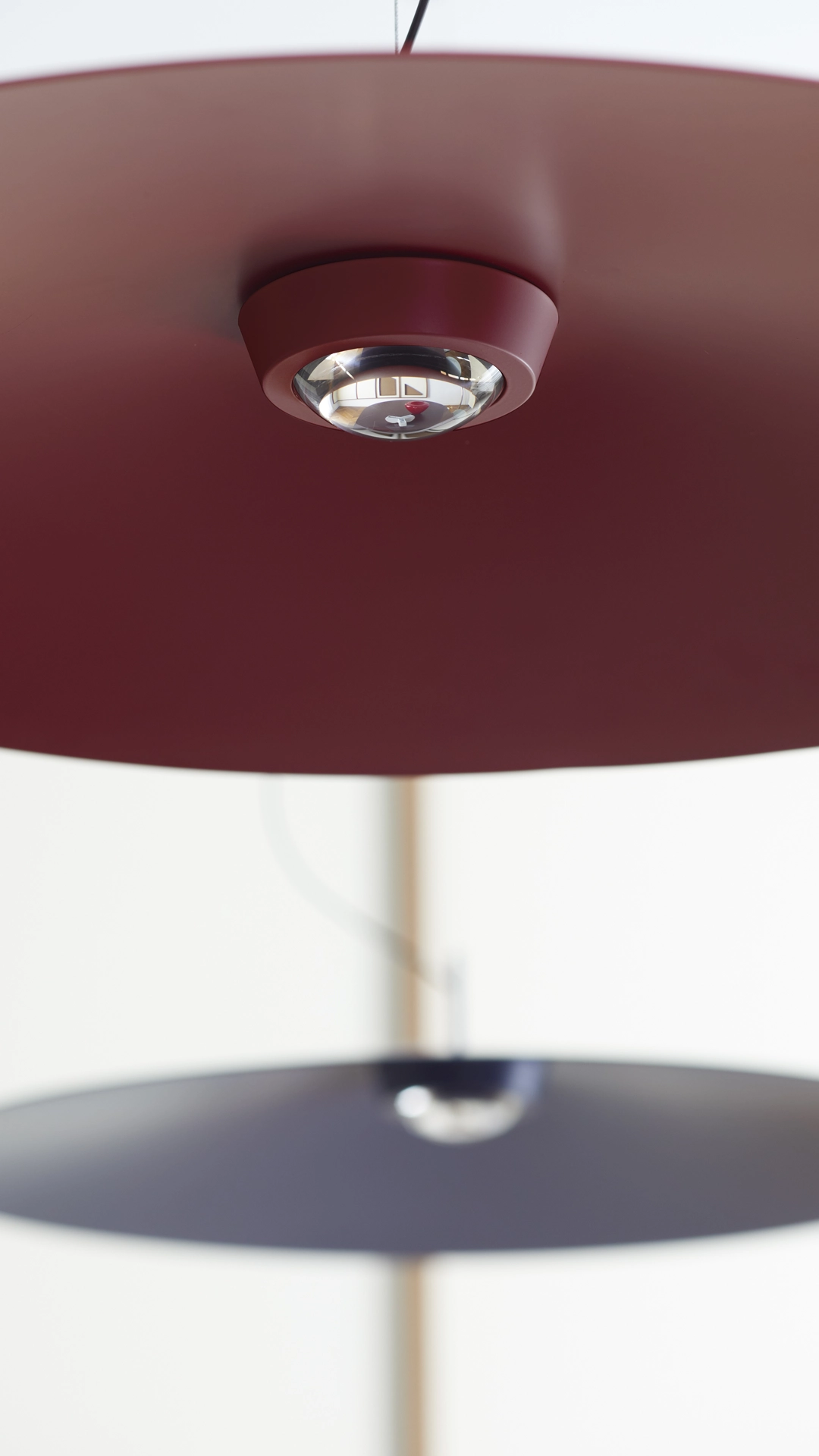

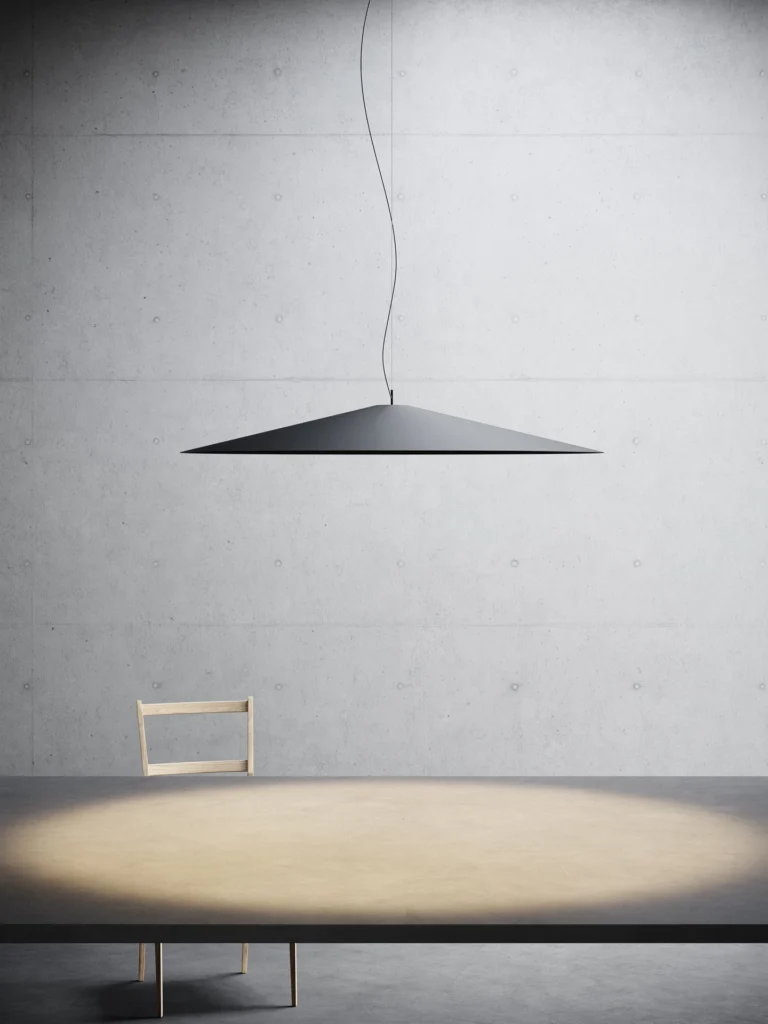

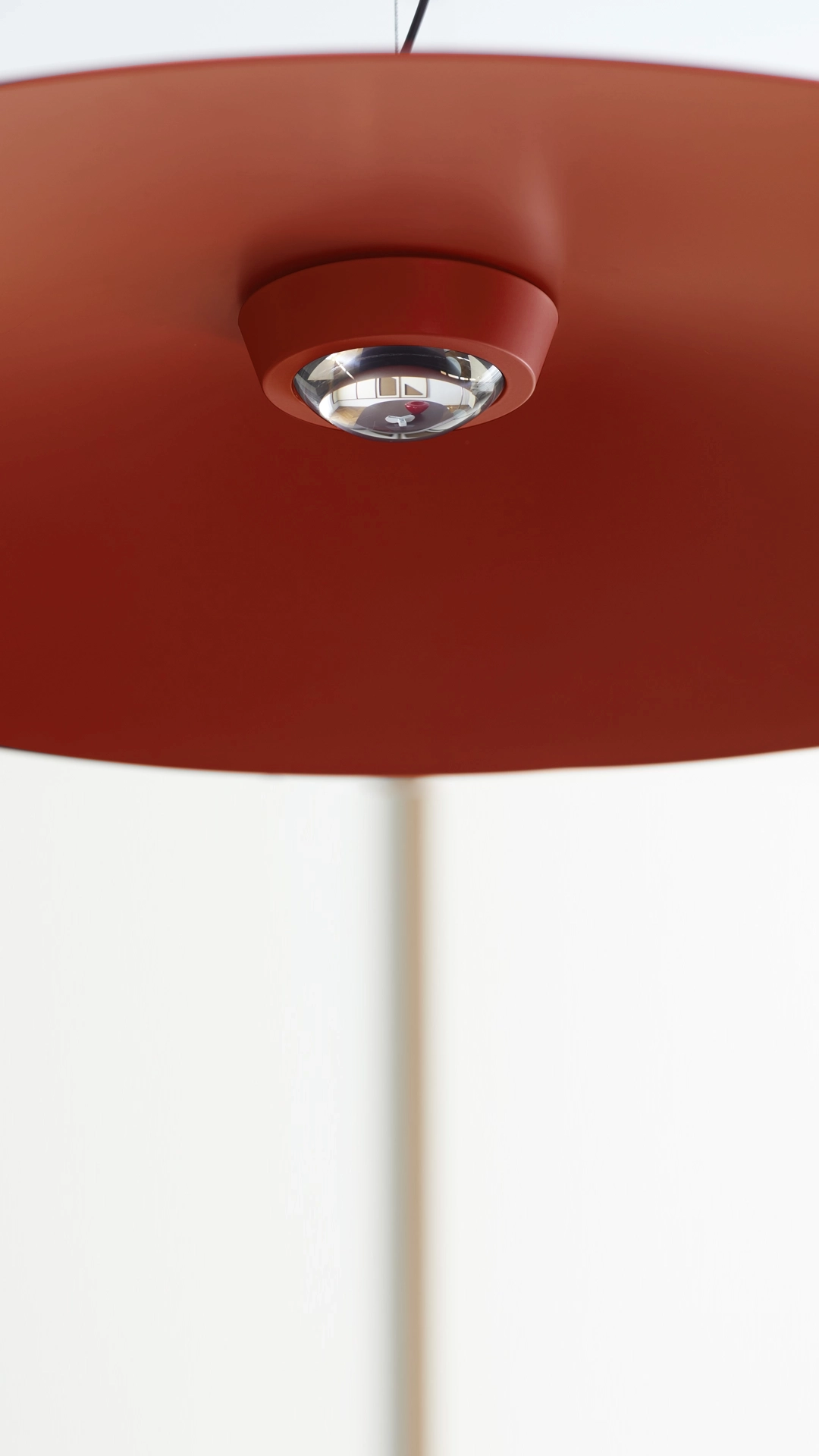

Elegance and purity in form characterise the “Koinè” family of pendant lights, named for its meaning of “shared language” and for its shapes which make it extremely versatile. The light source features a specially designed mineral lens. The light beam distributed by the lens is homogenous and distinct, a broad cone of light with clearly-defined edges

Models

A07S20W

Koinè Suspension
Ø 20 – 2700K

Discover

A07S20

Koinè Suspension
Ø 20 – 3000K

Discover

A07S37WN

Koinè Suspension
Ø 37 – 2700K

Discover

A07S37N

Koinè Suspension
Ø 37 – 3000K

Discover

A07S55WN

Koinè Suspension
Ø 55 – 2700K

Discover

A07S55N

Koinè Suspension
Ø 55 – 3000K

Discover

A07S86W

Koinè Suspension
Ø 86 – 2700K

Discover

A07S86

Koinè Suspension
Ø 86 – 3000K

Discover

A07F11WN

Koinè Suspension
Ø 110 – 2700K

Discover

A07F11N

Koinè Suspension
Ø 110 – 3000K

Discover

A07S20W

Koinè Ø 20 – 2700K

Main specifications

Typology Suspension
Application Indoor
Material
structure Aluminium structure, glass lens
ceiling rose aluminium
Finishes
structure black, white, red, blu
ceiling rose black
accessory black
Dimensions (mm) H 80, D 200
Weight (kg) 0.45
Light Source 15W, 40W/700mA, 2700K, CRI 90
Insulation Class III

A07S20

Koinè Ø 20 – 3000K

Main specifications

Typology Suspension
Application Indoor
Material
structure Aluminium structure, glass lens
ceiling rose aluminium
Finishes
structure black, white, red, blu
ceiling rose black
accessory black
Dimensions (mm) H 80, D 200
Weight (kg) 0.45
Light Source 15W, 40W/700mA, 3000K, 2700K, CRI 90
Insulation Class III

A07S37WN

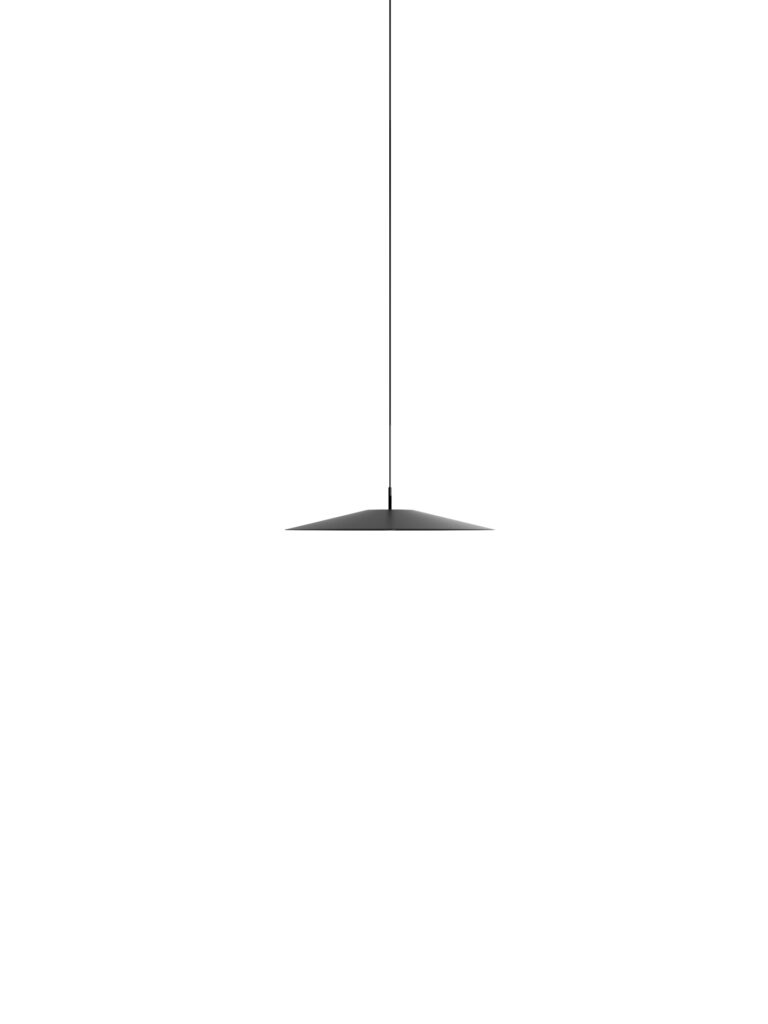

Koinè Ø 37 – 2700K

Main specifications

Typology Suspension
Application Indoor
Material
structure Aluminium structure, glass lens
ceiling rose aluminium
Finishes
structure matt black, matt white, mat red, mat blue
ceiling rose matt black
Dimensions (mm) H 80, D 370
Weight (kg) 1.1
Light Source 21W (A07/1D), 22W (A07/1T), Max 36W/500mA, Max 30W/500mA, 2700K, CRI 90
Insulation Class III

A07S37N

Koinè Ø 37 – 3000K

Main specifications

Typology Suspension
Application Indoor
Material
structure Aluminium structure, glass lens
ceiling rose aluminium
Finishes
structure matt black, matt white, mat red, mat blue
ceiling rose matt black
Dimensions (mm) H 80, D 370
Weight (kg) 1.1
Light Source 21W (A07/1D), 22W (A07/1T), Max 36W/500mA, Max 30W/500mA, 3000K, CRI 90
Insulation Class III

A07S55WN

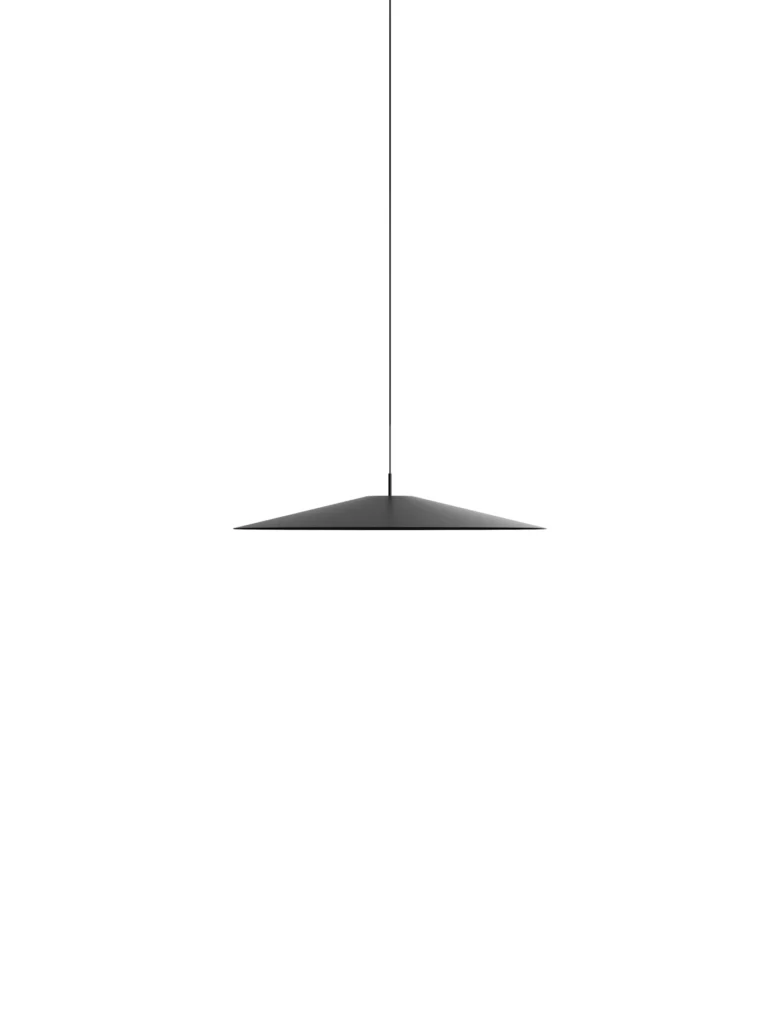

Koinè Ø 55 – 2700K

Main specifications

Typology Suspension
Application Indoor
Material
structure Aluminium structure, glass lens
ceiling rose aluminium
Finishes
structure matt black, matt white, mat red, mat blue
ceiling rose matt black
Dimensions (mm) H 100, D 550
Weight (kg) 1.5
Light Source 21W (A07/1D), 22W (A07/1T), Max 36W/500mA, Max 30W/500mA, 2700K, CRI 90
Insulation Class III

A07S55N

Koinè Ø 55 – 3000K

Main specifications

Typology Suspension
Application Indoor
Material
structure Aluminium structure, glass lens
ceiling rose aluminium
Finishes
structure matt black, matt white, mat red, mat blue
ceiling rose matt black
Dimensions (mm) H 100, D 550
Weight (kg) 1.5
Light Source 21W (A07/1D), 22W (A07/1T), Max 36W/500mA, Max 30W/500mA, 3000K, CRI 90
Insulation Class III

A07S86W

Koinè Ø 86 – 2700K

Main specifications

Typology Suspension
Application Indoor
Material
structure Aluminium structure, glass lens
Finishes
structure black, white
Dimensions (mm) H 150, D 860
Weight (kg) 3
Light Source 30W (A07/2D), 31W (A07/2T), 2700K, CRI 90
Insulation Class III

A07S86

Koinè Ø 86 – 3000K

Main specifications

Typology Suspension
Application Indoor
Material
structure Aluminium structure, glass lens
Finishes
structure black, white
Dimensions (mm) H 150, D 860
Weight (kg) 3
Light Source 30W (A07/2D), 31W (A07/2T), 3000K, CRI 90
Insulation Class III

A07F11WN

Koinè Ø 110 – 2700K

Main specifications

Typology Suspension
Application Indoor
Material
structure aluminium structure, felt shade, glass lens
ceiling rose aluminium
Finishes
structure medium grey, anthracite, green
ceiling rose matt black
Dimensions (mm) H 150, D 1100
Weight (kg) 3.8
Light Source 30W (A07/2D), 31W (A07/2T), 2700K, CRI 90
Insulation Class III

A07F11N

Koinè Ø 110 – 3000K

Main specifications

Typology Suspension
Application Indoor
Material
structure aluminium structure, felt shade, glass lens
Finishes
structure medium grey, anthracite, green
Dimensions (mm) H 150, D 1100
Weight (kg) 3.8
Light Source 30W (A07/2D), 31W (A07/2T), Max 36W/500mA, Max 40W/700mA, 3000K, CRI 90
Insulation Class III
