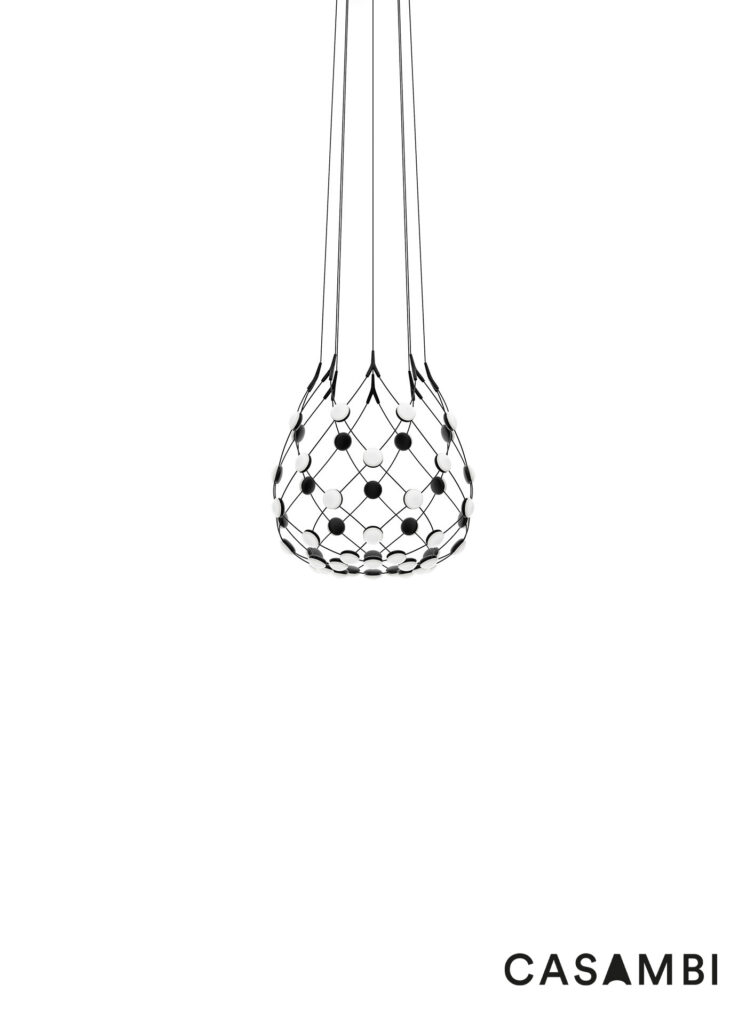

Mesh suspension lamp Luceplan

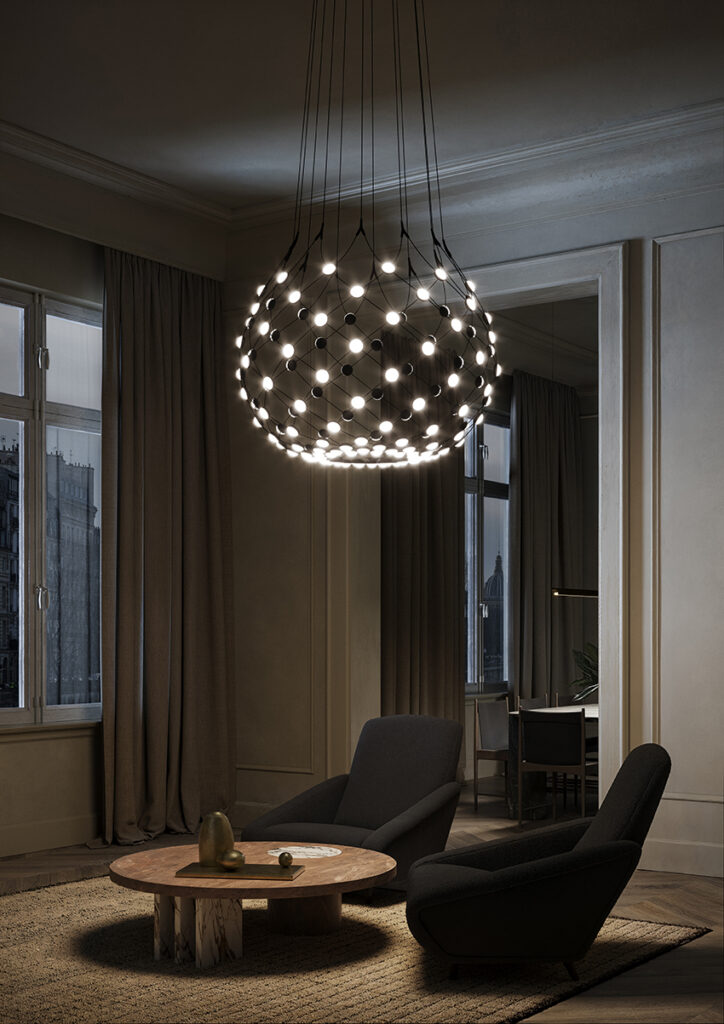

1 Mesh suspension lamp Luceplan
2 Mesh suspension lamp Luceplan
3 Mesh suspension lamp Luceplan
4 Mesh suspension lamp Luceplan
5 Mesh suspension lamp Luceplan
6 Mesh suspension lamp Luceplan
7 Mesh suspension lamp Luceplan

Mesh

Francisco Gomez Paz

 Suspension
Product Overview Models Downloads

Overview

A lamp of great theatrical impact whose almost transparent structure, composed of a network of flexible cables with LED sources positioned at their intersections, conceals the complexity of the design, dematerializing it to make room for only the light, the true protagonist. The particular structure permits exceptional freedom in the control of luminance: it is possible to govern the intensity of the light and to choose which portions of the lamp to turn on.

Design Francisco Gomez Paz, 2015


All Mesh suspension versions are now preassembled and ready for fast installation.

Available models

product-views

Model

D86N

Material

Structure in steel, lenses in polycarbonate

Dimensions

h 3' or 16'
Ø 39.4"
canopy Ø 11.8"

Structure Finishes

Black structure, white opaline lenses

Light Source

LED 65W 2700K CRI 90
on/off and phase cut dimming

Brochure

Download the brochuredownload file

Data Sheet

Download data sheetdownload file

BIM/Revit Files

Download BIM/Revit Filesdownload file
product-views

Model

D86NPI

Material

Structure in steel, lenses in polycarbonate

Dimensions

h 3' or 16'
Ø 31.5"
canopy Ø 11.8"

Structure Finishes

Black structure, white opaline lenses

Light Source

LED 50W 2700K CRI 90
on/off and phase cut dimming

Brochure

Download the brochuredownload file

Data Sheet

Download data sheetdownload file

BIM/Revit Files

Download BIM/Revit Filesdownload file
product-views

Model

D86C551

Material

Structure in steel, lenses in polycarbonate

Dimensions

Ø 21.6", H 21.6"
L cable 3', canopy Ø 10"

Structure Finishes

Black structure, white opaline lenses

Light Source

LED 26W 2700K CRI 90
dimmable phase cut

Brochure

Download the brochuredownload file

Data Sheet

Download data sheetdownload file
product-views

Model

D86C555

Material

Structure in steel, lenses in polycarbonate

Dimensions

Ø 21.6", H 21.6"
L cable 16', canopy Ø 10"

Structure Finishes

Black structure, white opaline lenses

Light Source

LED 26W 2700K CRI 90
dimmable phase cut

Brochure

Download the brochuredownload file

Data Sheet

Download data sheetdownload file

Available models

product-views

Model

D86

Material

Structure in steel, lenses in polycarbonate

Dimensions

h 100/500 cm
Ø 100 cm
ceiling rose Ø 30cm

Structure Finishes

black

Light Source

LED 61W or 64W 2700K dimmable

Insulation Class

I

Brochure

Download the brochuredownload file

Data Sheet

Download data sheetdownload file }
product-views

Model

D86PI

Material

Structure in steel, lenses in polycarbonate

Dimensions

h 100/500 cm
Ø 80 cm
ceiling rose Ø 30 cm

Structure Finishes

black

Light Source

LED 50W or 53W 2700K dimmable

Insulation Class

I

Brochure

Download the brochuredownload file

Data Sheet

Download data sheetdownload file }
product-views

Model

D86C551

Material

Steel structure, polycarbonate lenses

Dimensions

h 100 cm
Ø 55 cm

Structure Finishes

Black structure, white opaline lenses

Light Source

LED 40W, 2700 K dimmable

Insulation Class

I

Brochure

Download the brochuredownload file

Data Sheet

Download data sheetdownload file }
product-views

Model

D86C555

Material

Steel structure, polycarbonate lenses

Dimensions

h 500 cm
Ø 55 cm

Structure Finishes

Black structure, white opaline lenses

Light Source

LED 40W, 2700 K dimmable

Insulation Class

I

Brochure

Download the brochuredownload file

Data Sheet

Download data sheetdownload file }

Downloads

Instruction sheet
D860I0010_D86KT.pdfdownload fileD860I0006_MESH_D86C55.pdfdownload fileD860I0011_D86KW.pdfdownload fileD860I0008_MESH_kit-wireless.pdfdownload file
Instruction sheet
Mesh-80-100-phase-cut.pdfdownload file
2D Drawings
Mesh_D86.dwgdownload fileMesh_D86_55.dwgdownload fileMesh_D86_80.dxfdownload file
3D Models
Mesh_D86.dxfdownload fileD86C55.dxfdownload fileMesh_D86_80_3d.dxfdownload file
Photometric Data
MESH_D86C55_SUSPENSION.zipdownload fileMesh_EU.zipdownload file
BIM/Revit Files
LUCEPLAN_MESH_D86N.zipdownload file
IES Files
Mesh_UL-1598966012.zipdownload file
